AT-XP3/H
$169.00 inc GST

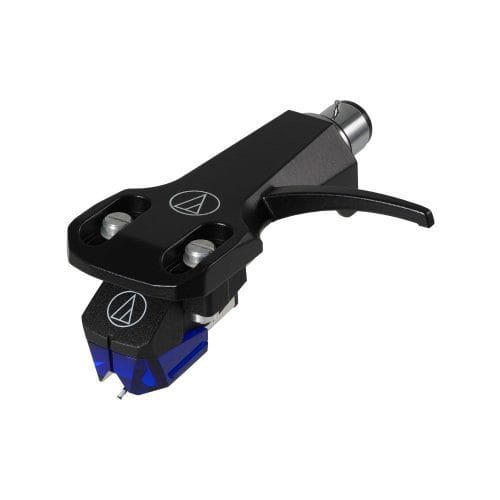

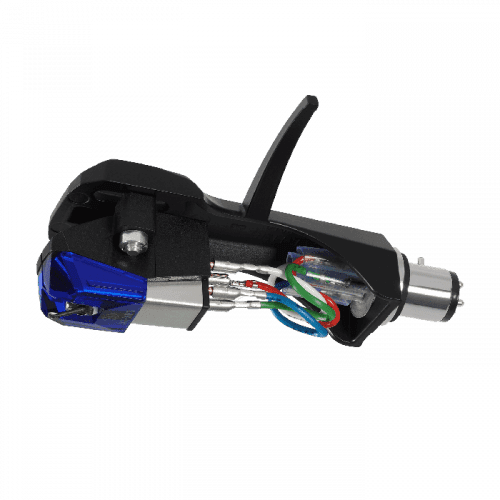

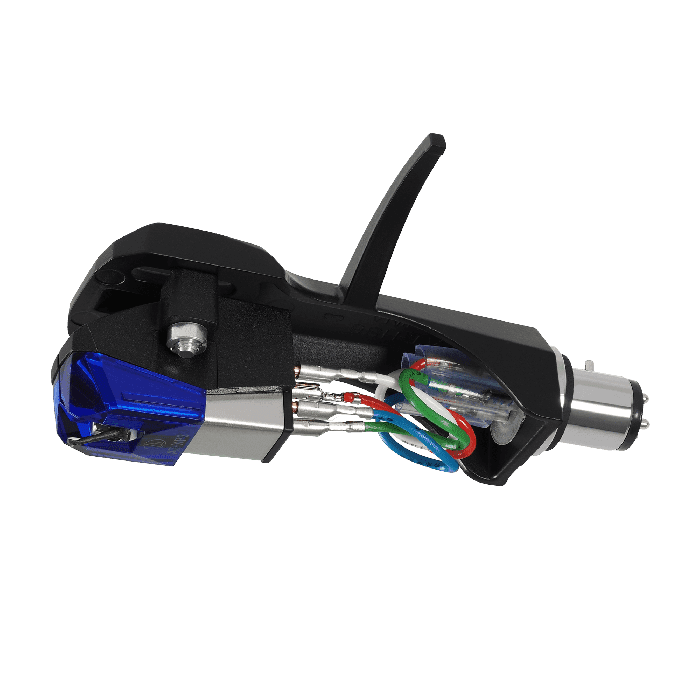

The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell. The stylus features a conical bonded tip.
Out of stock
Specifications:
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 to 18,000 Hz |
| Channel Separation | 20 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 6,700 ohms (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 5.5 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | Conical |
| Cantilever | Carbon reinforced ABS |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 6.0 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 15.6g |
| Dimensions | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Model | AT-XP3/H |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP3 |
| Stylus Size | 0.6 mil |
| Weight | 0.075 kg |
|---|---|
| Dimensions | 10.5 × 7.5 × 5 cm |
